Sigenergy SigenStor Battery System

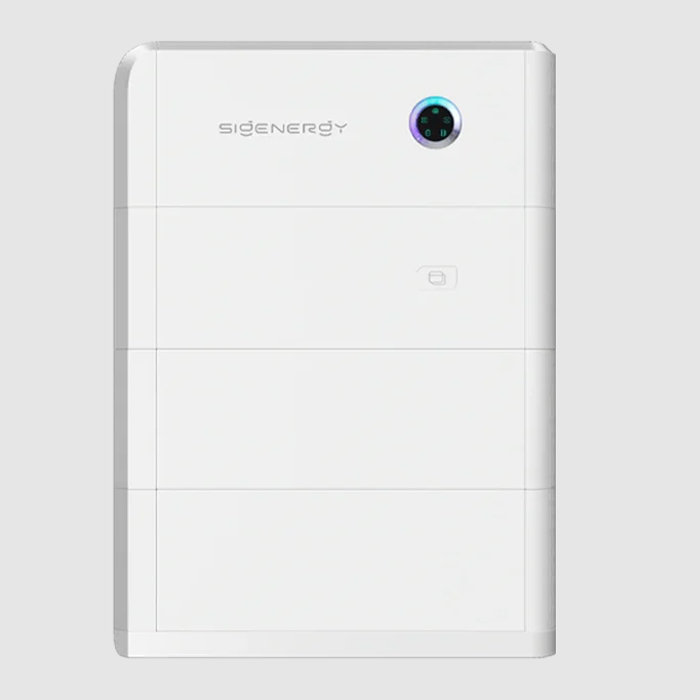

Sigenergy SigenStor Energy Storage System

The Sigenergy SigenStor is an advanced all-in-one energy storage solution designed for both residential and commercial applications. It seamlessly integrates the battery, hybrid inverter, and optional EV charger into a single, compact system—simplifying installation while delivering powerful performance.

Engineered for flexibility, SigenStor offers scalable storage up to 48 kWh, reliable backup power, and intelligent energy management through real-time monitoring via the Sigen App.

Key Features

• Modular & Scalable Design
  Start from 5 kWh and expand up to 48 kWh as your energy needs grow.

• AI-Powered Energy Optimisation
  Smart learning algorithms analyse usage patterns to help reduce electricity costs.

• True All-in-One System
  Integrated hybrid inverter with optional EV charger support.

• Instant Backup Power
  Built-in UPS functionality delivers seamless power during grid outages.

• Safe & Long-Lasting Battery Technology
  Uses Lithium Iron Phosphate (LFP) chemistry for enhanced safety and durability.

• Smart App Monitoring
  Control and monitor system performance anytime, anywhere using the Sigen App.

Technical Overview

• Battery Capacity: 5 kWh per module

• Maximum System Capacity: Up to 48 kWh

• Battery Chemistry: LiFePO₄ (LFP)

• Rated Output Power: Varies by system configuration

• Ingress Protection: IP66

• Installation Options: Wall-mounted or floor-standing

• Warranty: 10 years*

SigenStor BAT 5.0 Battery Module

The SigenStor BAT 5.0 is a high-performance lithium iron phosphate battery module designed for seamless integration within Sigenergy’s 5-in-1 energy storage platform. It is ideal for residential homes and small commercial sites seeking reliable, expandable energy storage with advanced safety and intelligent control.

Key Specifications

• Total Energy Capacity: 5.38 kWh

• Usable Energy: 5.2 kWh

• Battery Chemistry: LiFePO₄ (Lithium Iron Phosphate)

• Cell Capacity: 280 Ah

• Cycle Life: Up to 10,000 cycles

• Nominal Voltage:

  • 600 V (Single-phase systems)

  • 900 V (Three-phase systems)

• Continuous Charge / Discharge Power: 2.5 kW

• Peak Charge / Discharge Power (10 seconds): 3.75 kW

• Dimensions (W × H × D): 767 × 270 × 260 mm

• Weight: 55 kg

• Operating Temperature Range: -20°C to 55°C

• Ingress Protection: IP66 – suitable for indoor and outdoor installation

• Mounting Options: Wall-mounted or floor-standing

• Warranty: 10 years

👉 Download the SigenStor BAT 5.0 Datasheet for full technical specifications.
